23. For this problem, we will solve the same problem shown on the previous page, but this time we will use SEEP2D.
Build a model in GMS to simulate the flow through the foundation (orange zone) using SEEP2D.
Click here to download a copy of the solution.

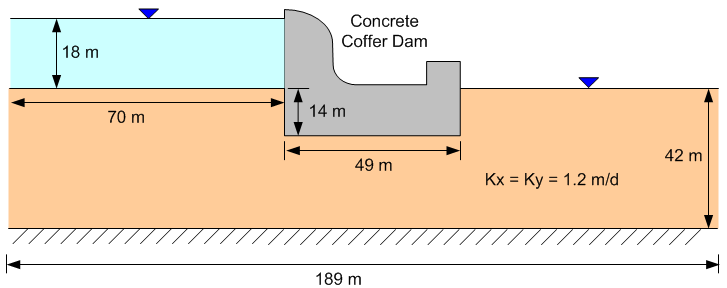

Use the lower left corner of the foundation as your coordinate origin (0,0). Use the diagram to determine the coordinates of the key locations in the model domain.
Redistribute the vertices on your arcs so that the element edge length = 2 m adjacent to the coffer dam and 5 m everywhere else.
Scoring:
a) (3 pts) Conceptual model setup
b) (1.5 pt) Material properties
c) (3 pts) Boundary conditions
d) (2.5 pts) Mesh construction
e) (1.5 pts) SEEP2D setup
f) (1.5 pts) Solution
