[Page 8] |

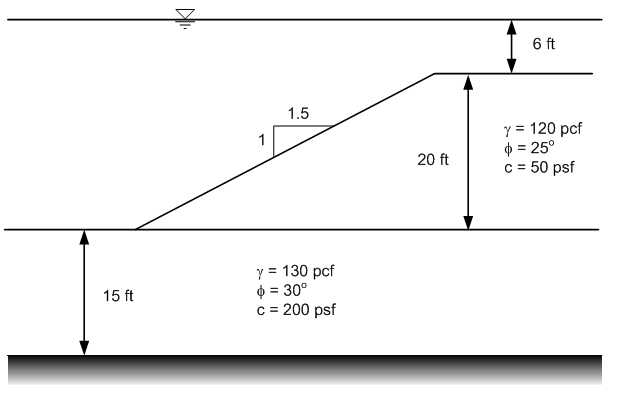

23. Consider the following slope:
Do the following:
(a) (3 pts) Prepare your input (coordinates, etc.) in a spreadsheet. Set up your coordinate system so that the toe of the slope is the origin (0,0).
(b) (3 pts) Enter the data into UTEXASED. Use an effective stress analysis.
(b) (2 pts) Solve for the critical factor of safety for the slope
Click here to download a copy of the solution.
